silicon wafer silkscreen
single track SLPD SMD SMT soft
soft copy software
space transformer sputtering SQFP ST
stable datum stack-up
STEP model Streamlined Design
Streamlined PCB Design stuff sub-panel substrate
surface mount symbol
SAC4 Self-Aligned Controlled Collapse Chip Connect. A variation of C4 flip-chip technology. . PFEIFFER L, WEST KW, WONG YH ,Journal of the Electrochemical Society (JES) Volume 134, Number 11, November 1987.
schematic A diagram which shows, by means of graphic symbols, the electrical connections, components and functions of an electrical system. The components are represented by agreed-upon symbols, and the conductors connecting them by lines. If two lines cross each other, a large dot represents a junction, whereas no dot represents no connection.
short Short circuit. 1. An abnormal connection of relatively low resistance between two points of a circuit. The result is excess (often damaging) current between these points. Such a connection is considered to have occurred in a printed wiring CAD database or artwork anytime conductors from different nets either touch or come closer than the minimum spacing allowed for the design rules being use.
silicon wafer a thin, iridescent, silvery disk of silicon which contains a set of integrated circuits, prior to their being cut free and packaged. A silicon wafer will diffract reflected light into rainbow patterns and, being a similar size, looks so much like a music CD that it could be mistaken for one (except that it has no label or hole in the middle). On closer inspection, one can see the individual (usually rectangular- or square-shaped) integrated circuits which form a uniform patchwork quite unlike the surface of a music CD. When cut or etched from the wafer these circuits are then called chips or dice.
silkscreen (Also called "silkscreen legend")
SMT Surface Mount Technology.
soft Pertaining to or consisting of software.
soft copy An electronic form of a document; a data file in computer memory or stored on storage media. When one is looking at a soft copy he is viewing the document as displayed on a computer monitor.
software Programs, data files, procedures, rules, and any associated documentation pertaining to the operation of a computer system or of a computer application.
solder balls The round solder balls bonded to a transistor contact area and used to make connection to a conductor by face-down bonding techniques.
In IBM's ceramic BGA's, the solder used in solder balls has a higher melting point than that used in soldering the ball to the chip substrate and the BGA to a board. IBM uses 10/90 tin/lead for the solder ball and eutectic solder for the assembly. The high melt balls of the BGA do not melt during PCB assembly and thus create a pre-determined standoff height for the component.
PBGA packages use a eutectic solder ball which provides a collapsible joint similar to C4.
[Source: IBM Ceramic Ball Grid Array Surface Mount Assembly and Rework ]
solder bumps solder balls.
solder coat A layer of solder that is applied directly from a molten solder bath to a PWB during manufacture, after the application of solder mask. This coats the terminals (copper pads) to be soldered during assembly with solder, providing a non-oxidizing protective layer.
The most widely-used method of applying solder coat is hot air solder leveling (HASL)..
solder mask A technique wherein everything on a circuit board is coated with a plastic except 1) the contacts to be soldered, 2) the gold-plated terminals of any card-edge connectors and 3)fiducial marks.
space transformer Abbreviated ST. A major component of certain high-density probe cards. It provides pitch reduction, high routing density and localized mid-frequency decoupling. A major developer of ATE systems which use space transformers is Wentworth Labs.
sputtering A deposition process wherein a surface, or target, is immersed in an inert-gas plasma and is bombarded by ionized molecules that eject surface atoms. The process is based on the disintegration of the target material under ion bombardment. Atoms broken away from the target material by gas ions deposit on the part (substrate), forming a thin film. [Graf]
stable datum a datum along which all other data align. From any confusion, order and sanity can emerge providing one merely selects a datum, assigns it importance or seniority and then begins to align other data against it.
The stable datum for any PCB layout could be stated this way: The schematic is the "Bible." In other words, the schematic says the circuit is this way, and the PCB design must follow that pattern perfectly.
stack-up The arrangement of layers of materials in the construction of a PCB. The individual layers can be of various thicknesses.
Most commonly, rigid PCBs are 1/16 inch [1.5875 mm] thick in total. This is the thickness of "cards" you can add to your desktop computer. There is a tolerance on this overall 1/16th inch thickness of plus or minus 10%. Of course, PCBs can be thinner or thicker based on the end use for which they are intended.
In the case of the computer card, if the card has a lot of electronic power, such as a gamer's video card, it will be physically large. But also, it will have more layers than a simple Wi-Fi card. Needing to remain 1/16th inch thick [62.5 mils or 1.5875 mm], the layers will be thinner. Especially the center layer.
At the center layer of a PCB stack-up is a core (q.v.). The rest of the layers we can call "outer" layers. These are made thin. The best practice is to keep the outer dielectrics at 4 mils [102 microns] to 8 mils [204 microns] thickness. The use of thin outer layers has to do with electromagnetic compatibility (EMC).
EMC side-note: Thin layers help in electromagnetic field containment when layers with signal wires are sandwiched between ground planes. The thin layers of dielectric between the conducting layers means the electromagnetic fields (EM fields) set up between the signals and ground plane will be small. The smaller the EM fields, the less noise is generated by electromagnetic interference (EMI). This is fundamental to improving EMC.
The core at the center, being a slab of dielectric with layers of copper on top and bottom, provides the two inner-most layers of copper and enough dielectric thickness to make up the difference between the thickness of all the other materials and the 1/16th inch thickness of the card. This provides rigidity. If the core were too thin, the card would be flimsy and not fit snuggly into the motherboard connector. If the core were too thick, the card wouldn't fit at all. And all this might be more than you wanted to know about PCB stack-up. If you're a printed circuit designer, you already know all this. If not, I probably lost you a long time ago.

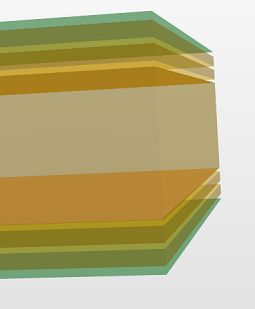

Stack-up 10 layers in CAD 3D perspective showing thick center core and thin outer layers. Vertical dimension has been exaggerated for illustration.
If the layers are reduced from 10 to 6, the center core must be thicker to maintain the overall thickness of 1/16th inch.
STEP model (STEP MAHD-dəl) Pronunciation Key noun [Computer Aided Design] A 3D body in CAD. STEP stands for "Standard for the Exchange of Product model data."
Altium Designer 13 and 10 can import STEP models into footprints and PCBs. 3D engineering drawing software such as Solid Works can export STEP models. STEP model files may have the extension .STP or .STEP. Most connector manufacturers have been very helpful to PCB designers by providing STEP models of their parts.
Streamlined PCB Design (SLPD) (The verb streamline means "Cause to be quick and efficient.") Streamlined design = accuracy plus speed. SLPD is a set of policies that can guide the design of printed circuit boards. The policies have been derived with the aim of simplifying PCB design and systematically eliminating errors from it. This should speed design and manufacturing.
Streamlined PCB Design is not a quick-and-dirty way for a PCB designer to make a fast buck. Some PCB designers who have learned some of its elements have complained that it is more work for them, not less.
It is important to get the viewpoint here: The system is streamlined with highest priority directed at the broad view of the overall electronics project and secondly from the narrower view of each step in the cycle of production. Therefore, part of a PCB designer's job in implementing SLPD is doing extra things in just such a way that help is provided to the downstream actions in the overall production cycle, especially board manufacture and assembly.
If one can eliminate whole categories of errors from creeping in, the overall cycle of production gets completed sooner with higher quality and reliability. Design and production become quick, efficient, streamlined.
sub-panel A group of printed circuits (called modules) arrayed in a panel and handled by both the board house and the assembly house as though it were a single printed wiring board. The sub-panel is usually prepared at the board house by routing most of the material separating individual modules, leaving small tabs. The tabs are strong enough so that the sub-panel can be assembled as a unit, and weak enough so that final separation of assembled modules is easily done.
substrate The supporting material on or in which the parts of an integrated circuit are attached or made. The substrate may be passive (thin film , hybrid ) or active ( monolithic compatible). [For more information see Modern Dictionary of Electronics, by Rudolf F. Graf.]
surface mount Surface mount technology. The technology of creating printed wiring wherein components are soldered to the board without using holes. The result is higher component density, allowing smaller PWB 's. Abbreviated SMT.
symbol A simplified design representing a part in a schematic circuit diagram.
